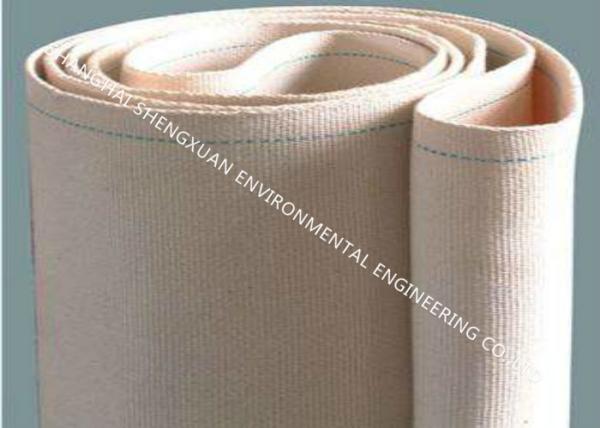

White Color Polyester Air Slide canvas conveyor Fabric 4.0 Kg / M2 For Alumina Transportation

Austin Industries fluidization fabric is ideal for the alumina transportation : many smelters are using it in their airslides. It improves alumina conveying as buffer silos, siphon smelter pots and fluidized bottom for filters.

Our quality of fabrics could be cut in any shape,plate or conical and fitted any place.

Working principle of air slide fabric

In cement plant
The Air slide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.

Specifications:

Raw Material =100% spun fiber polyester

Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O

Pressure: 2000pa for middle air resistance

4000pa for high air resistance

Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%

Max Width: 2800mm

Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C

As the young pioneer enterprise in the environmental protection industry, Shanghai ShengXuan Environmental Engineering Co.,Ltd adheres to the policy of putting people first and giving priority to science and technology and devotes itself to the devotes itself to the development and manufacture of series kinds bag filters and accessories which can be widely used in dust and liquid filtrations.

Now ,we have Three main parts products have been recognized and approved by users all over the world.

Dust bag filter industries

We produce the dust filter bags from the needle felts to the filter bags in whole own design and techology, FMS, Fiberglass,PPS, Nomex, P84,PTFE ,PET/PP which widely used in power, metallurgy,building materials, cement  and chemical indstries. In the same time, we also provide the technology service, maintenance service in customers site factory.

Fluid /liquid bag filters

From the liquid bag filters to the bag filter housings, produced by ourselves.

Conveyor belts industries

Polyester woven belts, air slide belts, conveyor belts , can be used in all conveyor industries.

We Sheng Xuan is determined to provide the air and water pollution control industry with best quality products and services.
