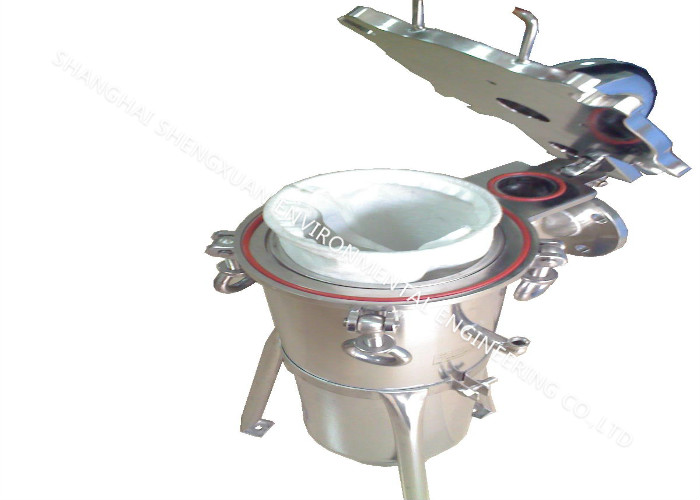

Lubricating oil purifier bag filters used in filter vessels

The high quality engineering plastic is selected to make the plastic collar with excellent physical properties and chemical corrosion resistance.The handle on the bag opening is above the liquid surface for easy replace the filter bag, and improve the work efficiency. Plastic collar specially designed, can be applied to almost of the bag filters on the markets at present.Any kinds of specification 1-4 filter bags, one specification of us produced fully welded liquid filtration bags with plastic collar can be compatible with.

Features

Seam treatment: ultrasonic welded or thread stitched

Seal ring options: Polypropylene or polyester SDS, STS, Zinc coated steel or stainless steel snap fit rings.

Ring attachment: Ultrasonic welded or thread stitched

Micron range:1,3,5,10,25,50,75,100,125,150,200 micron are available.

Efficiency: Nominal rating, 85% contaminant particle retention efficiency with a single pass.

Surface treatment: Fiber migration and extractable free glazed media surface treatment.

Media grade: Exclusively FDA compliant media , silicon free, and oil free.

Optimum replacing pressure differential 0.10 Mpa, Max 0.18 Mpa

Broad chemical compatibilities.

Specifications and operations

Applications:

Auto coating & paint

Water purification& processing

Pharmaceutical

Food& beverage

Bulk &fine chemicals

Electronics

As the young pioneer enterprise in the environmental protection industry, Shanghai ShengXuan Environmental Engineering Co.,Ltd adheres to the policy of putting people first and giving priority to science and technology and devotes itself to the devotes itself to the development and manufacture of series kinds bag filters and accessories which can be widely used in dust and liquid filtrations.

Now ,we have Three main parts products have been recognized and approved by users all over the world.

Dust bag filter industries

We produce the dust filter bags from the needle felts to the filter bags in whole own design and techology, FMS, Fiberglass,PPS, Nomex, P84,PTFE ,PET/PP which widely used in power, metallurgy,building materials, cement  and chemical indstries. In the same time, we also provide the technology service, maintenance service in customers site factory.

Fluid /liquid bag filters

From the liquid bag filters to the bag filter housings, produced by ourselves.

Conveyor belts industries

Polyester woven belts, air slide belts, conveyor belts , can be used in all conveyor industries.

We Sheng Xuan is determined to provide the air and water pollution control industry with best quality products and services.
