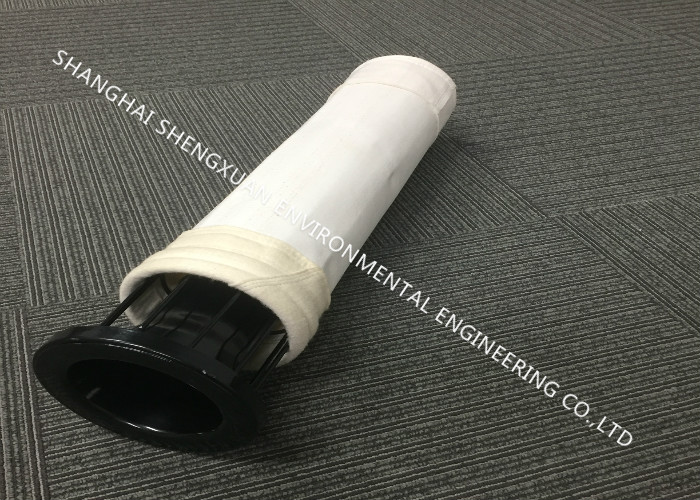

High temperature resistance P84 dust filter bags used for industry
dust filtration
We use the good quality imported P84 fiber, polyimide , to produce
100% pure P84 dust filter bags.it is good performance of easy
cleaning, decay resistance , it is widely used in the asphalt
plants,cement plants , waste incinerators, fluid bed boiler, coal
fired boiler that have higher request of the filter fineness and
use life.
According to the different requirement of the different working
conditions, our company could do various functional processing on
P84 Fiber high temperature resistance needle felt, such as water
and oil repellent, PTFE impregnation, coating, laminating and so
on.
| Article name | Weight | Thickness | Air permeability | Working temp. |
| Polyester | 450-700gsm | 1.6-2.2mm | 8-18 m3/m2.m | 130 degree |
| Polypropylene | 400-600gsm | 1.8-2.2mm | 8-20 m3/m2.m | 80 degree |
| Acrylic | 450-600gsm | 1.6-2.2mm | 8-20m3/m2.m | 125 degree |
How to choose the filter bag ?
The filter bag plays a key role in the dust-cleaning process, so it
is very important to do the filter selection, which should be based
on its performance and the nature of the smoke, so as to have a
rational and optimized scheme.
The Factors that affecting the selection of the filter medium
The Select Indication of the Filter medium
A. Temperature
B. Chemical Property
C. Concentration of the dust content
D. Filter Gas Speed
Test Item & Test Standard
| SL.No. | Item | Test Standard |
| 1 | Area Weight | FZ/T60003-91 |
| 2 | Air Permeability | GB/T5453-1997 |
| 3 | Tensile Strength | GB/T3923.1-2013 |
| 4 | Elongation | GB/T3923.1-2013 |
| 5 | Burst | GB/7742.1-2005 |
| 6 | Liquid Repellent | GB/4745-2012 |
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Applications:
cement dust collectors, coal burning boiler dust cleaning,concrete
mixing , waste incineration industries and so on.
