ultra fine Fiberglass filter bags element used in 650 m3 blast furnace dry Gas cleaning plants

Blast furnace dry gas cleaning silo is the special technology in China steel industries, dry GCP instead of wet GCP to cleaing the blast furnace gas. Filter bag is the most important parts.

We have involved in Blast furnace dry gas cleaning system 20 years ago, At present , we have successfully applied our superfine glass fiber needle punched filter bag FMS 9806 to the iron and steel industries, now they are used for Bao steel, Tang Steel, Shan Steel, JSPL , JSW, Bhushan steel ,SLR,Usha Martin and other foreign large-scale iron and steel enterprises.

FMS dry dust filter bag is the most suitable material used in blast furnace dry gas cleaning system which designed by Chinese MCC.

This kind fabric is needle punched by 3-4 fibers together, it has high temperature repellent, good air permeability, easy to take offer cake advantage. Now widely used in dry GCP system.

The detail description of filter medium

For reducing resistance of filter media, except the special technology for laying the fiber , we also choose different diameter fiber to process, let’s the fabric can be graded structure, on the fabric surface ,there is super fine fiber, to increase the fabric filtration precision ,anti-acid and alkali ,and en-length the life of fabric. In the actual application , the efficiency as same as membrane coating fabric , but resistance is more lower.

1)Nonwoven fabric cross section choose graded structure , fiber diameter from thin to thick, there are 4 layers, surface super fine fiber layer--super fine fiber---scrim—thick fiber layer. The fiber more thin, the ventilation channel more compact.

The special Applications

Blast furnace Dry GCP plant gas cleaning

Blast fuance volume: 250m3-5500m3

GCP plant : Dry

Dust silos No.s: 8-24 sets

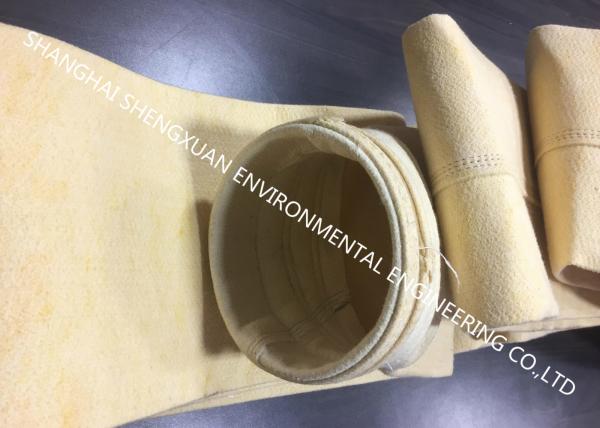

Bag filter size: DN 130x6000mm& DN 160x8000mm length

Working temp.: 100-300 degree C

Life: 12-18 months

Customers: Sinosteel, MCC , JSW, Baosteel,JSPL, and so on.

Service

Provide bag installation service, equipped with special instruments and trained professionals.

Provide follow-up service, maintain and direct the operation during run time.

When problem occurs,we will go to site within 24 hours to survey ,analyze and solve the problem.

Treatment equipment

Up to 350 degree high temperature heat setting machine, which assure the materia’s dimensions stability.

Oil and water repellent finishing equipment

PTFE membrane treatment equipment

Singeing machine, calendaring machine, fully automatic slitting machines.

Working conditons

As the young pioneer enterprise in the environmental protection industry, Shanghai ShengXuan Environmental Engineering Co.,Ltd adheres to the policy of putting people first and giving priority to science and technology and devotes itself to the devotes itself to the development and manufacture of series kinds bag filters and accessories which can be widely used in dust and liquid filtrations.

Now ,we have Three main parts products have been recognized and approved by users all over the world.

Dust bag filter industries

We produce the dust filter bags from the needle felts to the filter bags in whole own design and techology, FMS, Fiberglass,PPS, Nomex, P84,PTFE ,PET/PP which widely used in power, metallurgy,building materials, cement  and chemical indstries. In the same time, we also provide the technology service, maintenance service in customers site factory.

Fluid /liquid bag filters

From the liquid bag filters to the bag filter housings, produced by ourselves.

Conveyor belts industries

Polyester woven belts, air slide belts, conveyor belts , can be used in all conveyor industries.

We Sheng Xuan is determined to provide the air and water pollution control industry with best quality products and services.
